Adding RICOH Secure Print to a Windows PC

Intended audience:
All users

This tutorial is for setting up RICOH Streamline on all UK and non-UK Windows based machines. This is how you will setup access to print with your UK ID card on RICOH copiers.


You must be connected via ethernet or to eduroam, UK-Devices, or the GlobalProtect VPN to print.

Steps

1.

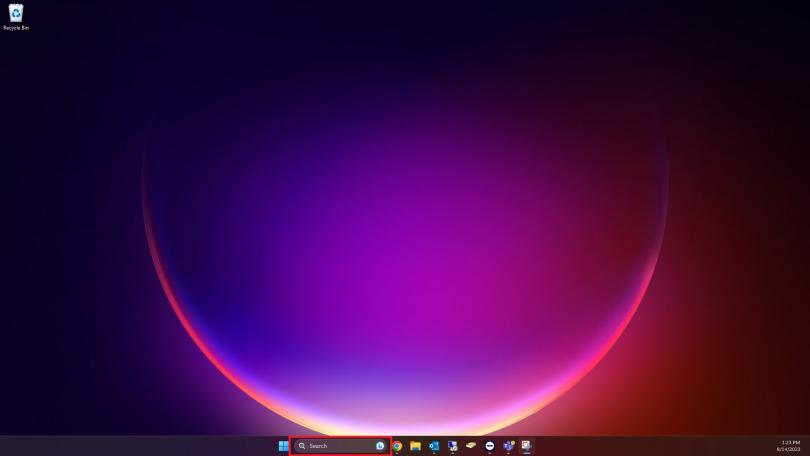

Click on the search bar at the bottom of your Windows PC.

step 1

2.

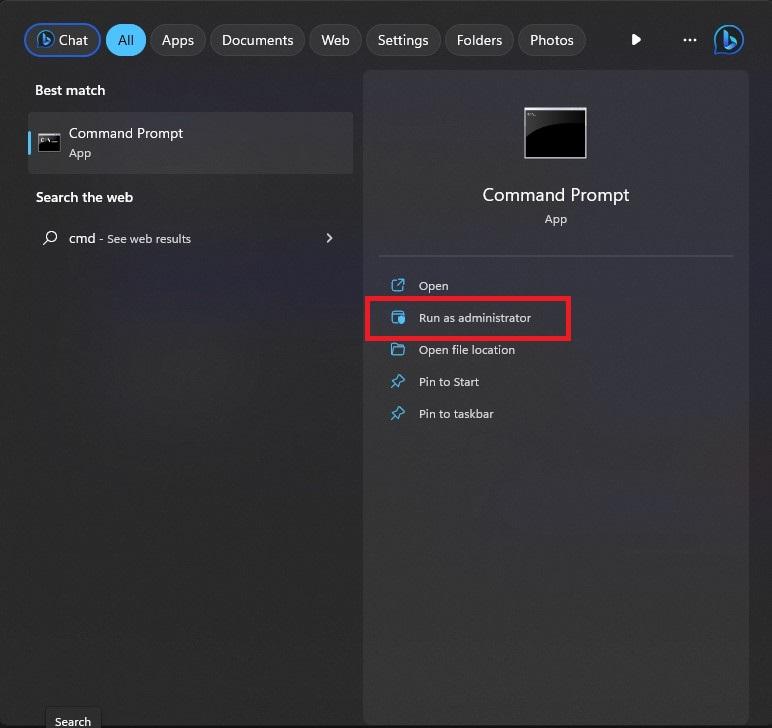

Type "cmd" without quotations. On the right hand side, choose "Run as administrator".

You may need to use "Make Me Admin" and then use linkblue credentials when prompted.


step 2

3.

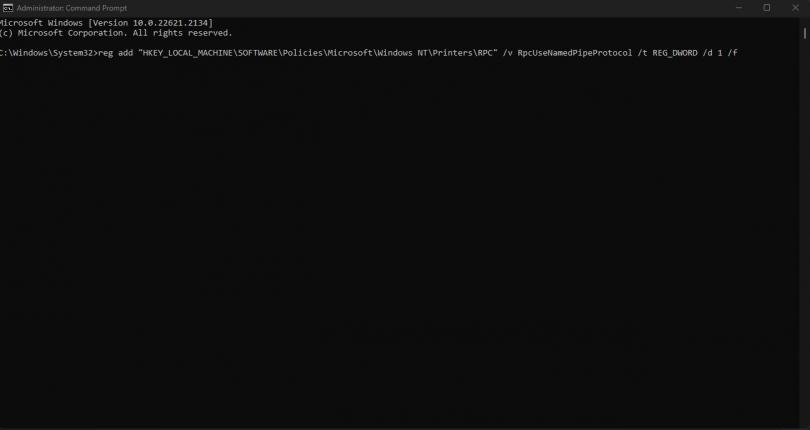

In the terminal window copy and paste the following command and then press Enter.

reg add "HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows NT\Printers\RPC" /v RpcUseNamedPipeProtocol /t REG_DWORD /d 1 /f

step 3

4.

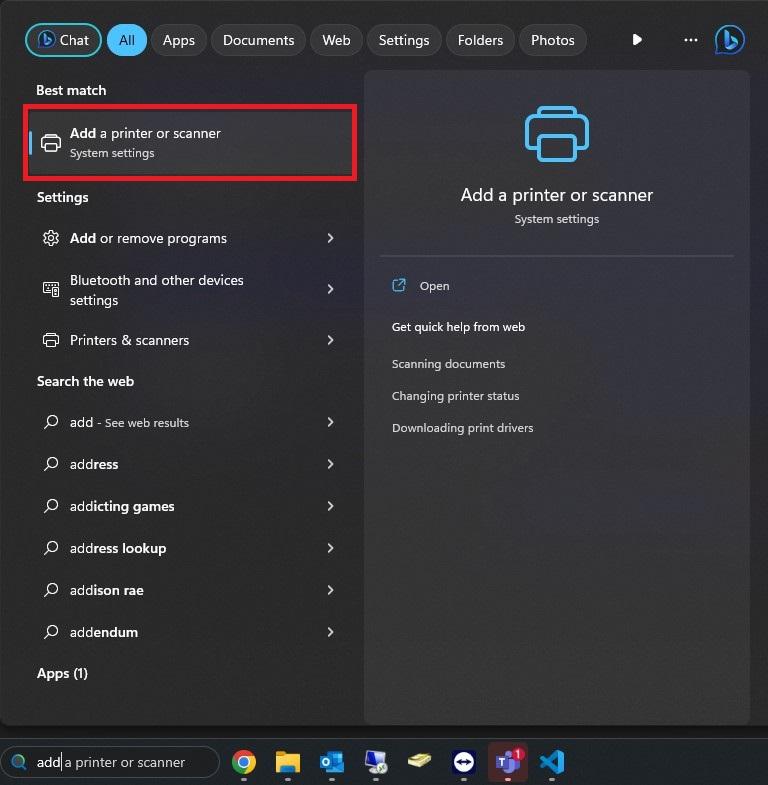

In the Windows search bar, search for "Add a printer or scanner".

step 4


5.

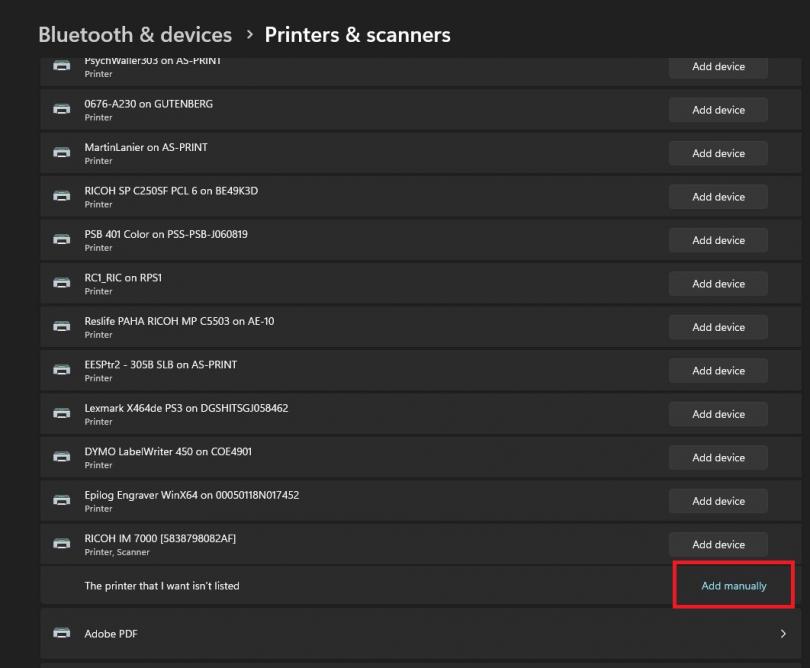

Choose "Add device" towards the top right of the window. Then scroll down to the bottom of the printer list and select "Add manually".

step 5

6.

In the window that follows, select the option for "Select a shared printer by name". Enter the following into the box:

\\slnx.prt.uky.edu\RICOH_Secure_Print

(Don't be alarmed if it takes a few minutes for this part to complete)

If you are prompted for credentials at this step, ensure for the username you use linkblue@uky.edu and your linkblue password.

7.

The printer should now be added. Make sure to scan your Wildcard ID at the printer and select "RICOH_Secure_Print" to see your job.



If you are on a machine that you do not use your linkblue ID to log in to follow these additional steps:

1.

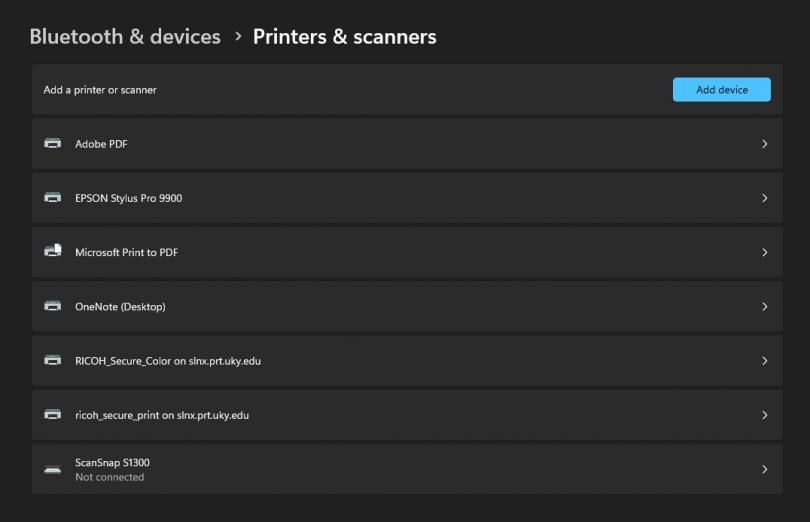

After the installation is complete, open your printers menu from Control Panel or the Windows search bar at the bottom of your screen.

step 9

2.

Select the printer, and then select "Printing preferences".

3.

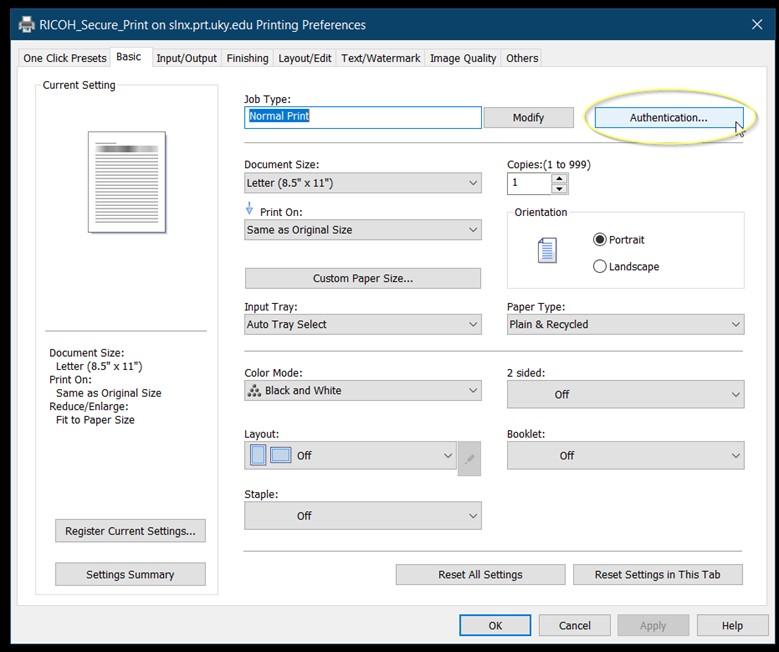

Select "Authentication" from the Basic tab at the top of the Printing Preferences menu.

step 7

4.

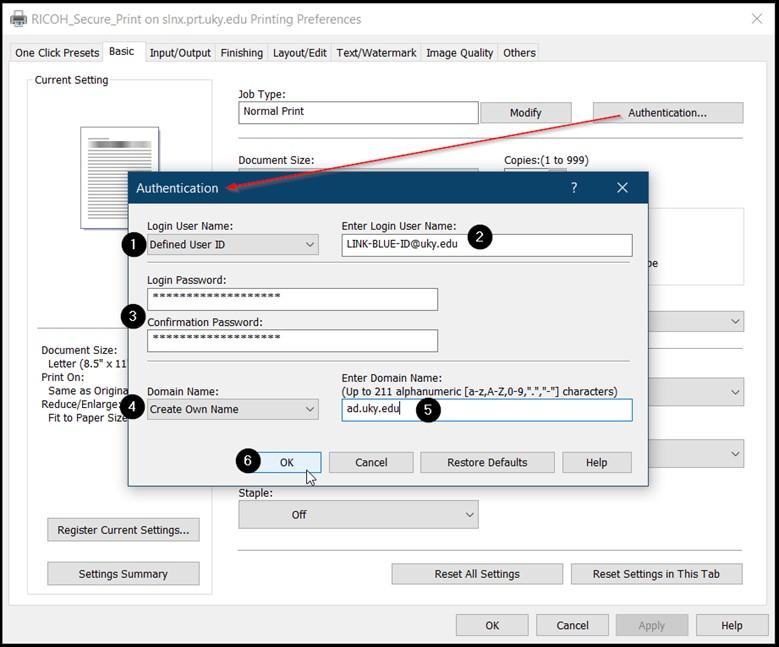

Enter your linkblue credentials as follows:

step 8

5.

Select OK to all printer windows, and then print your desired document. Use your UK ID badge to authenticate at the printer.
